Nora Lighting · Iolite Can-less

NIOC-4RTLNDC

4″ Round Trimless Downlight

Build and order the complete four-part system directly from the Nora ordering matrix. Suitable for new construction or remodel applications.

IC Air-Tight
Wet Location
Title 24 JA8
90+ CRI
5-Year Warranty

Complete system from$19.95

Components in stock

Choose configuration

Project Type Catalog number

Ordering matrixChoose one option in steps 1 and 2

1Trim finishNIOC-4RTLNDC — required

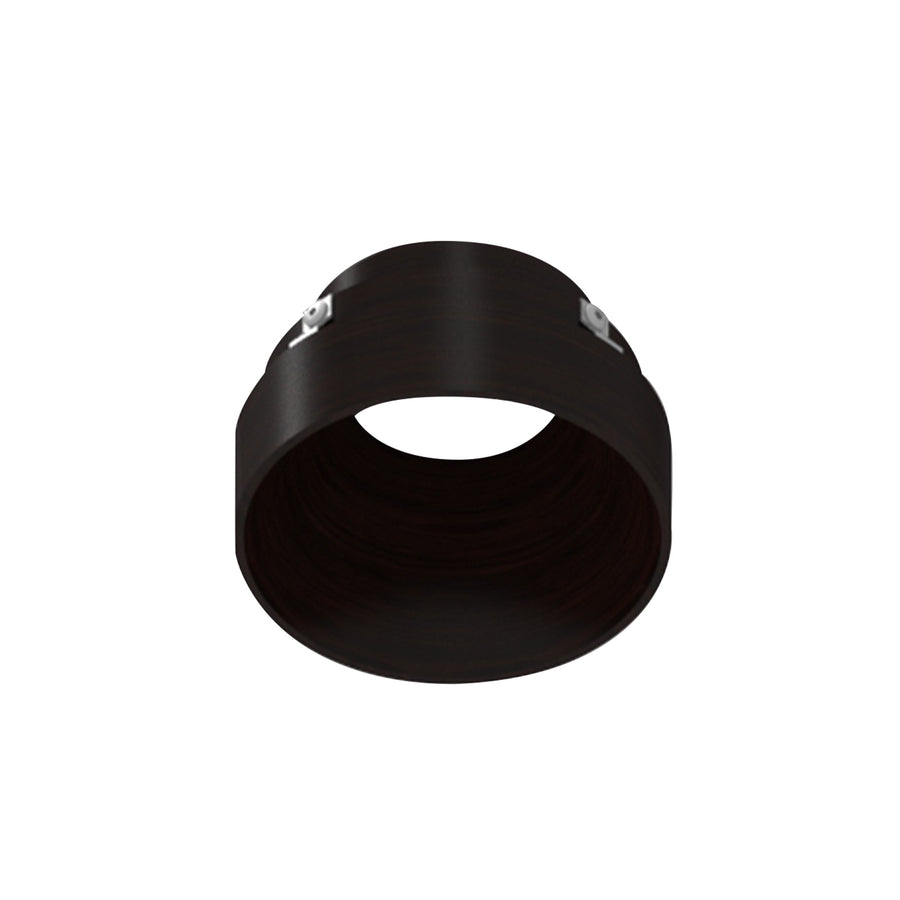

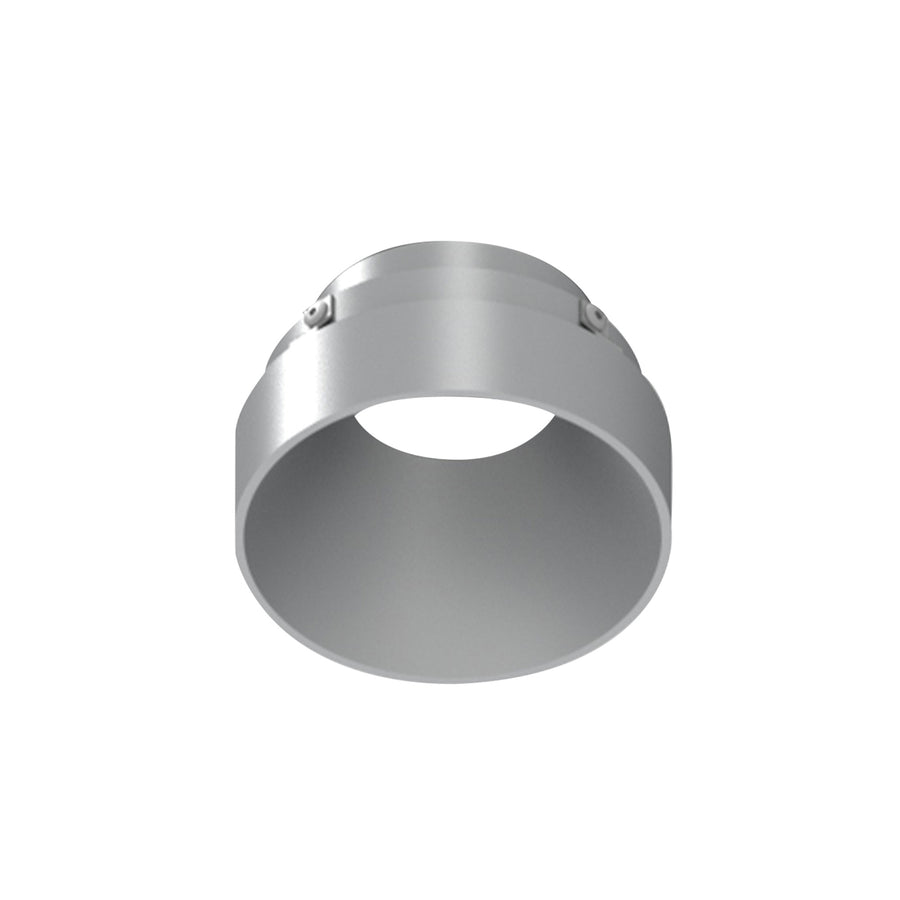

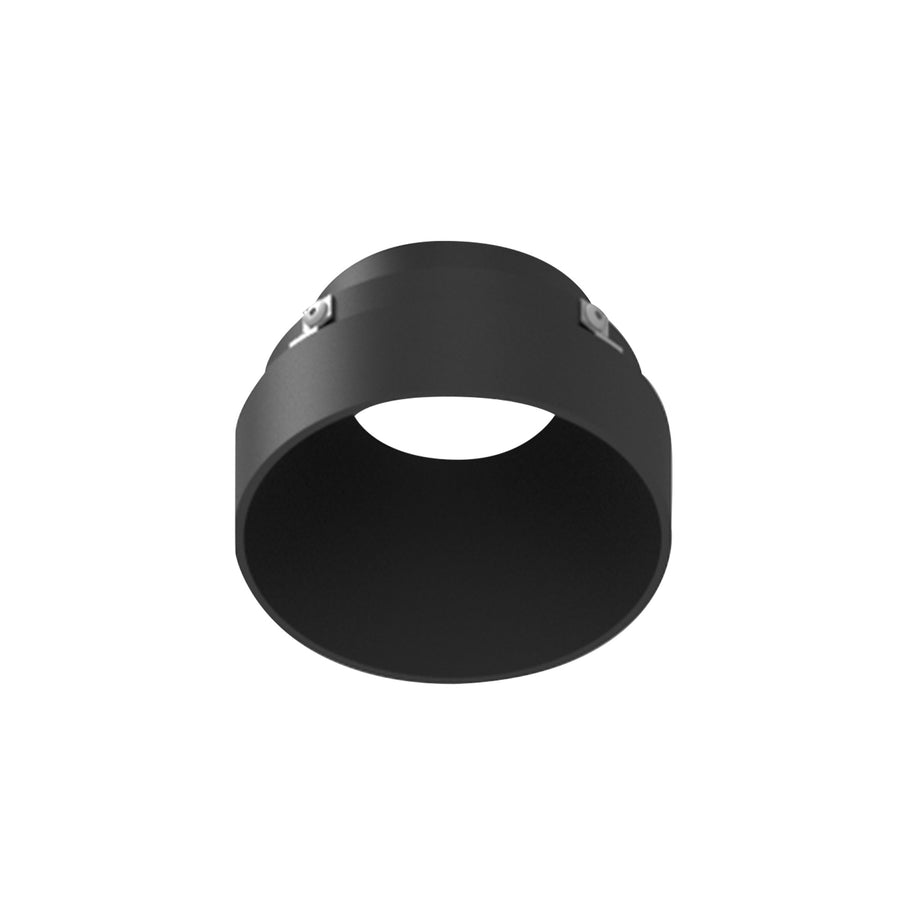

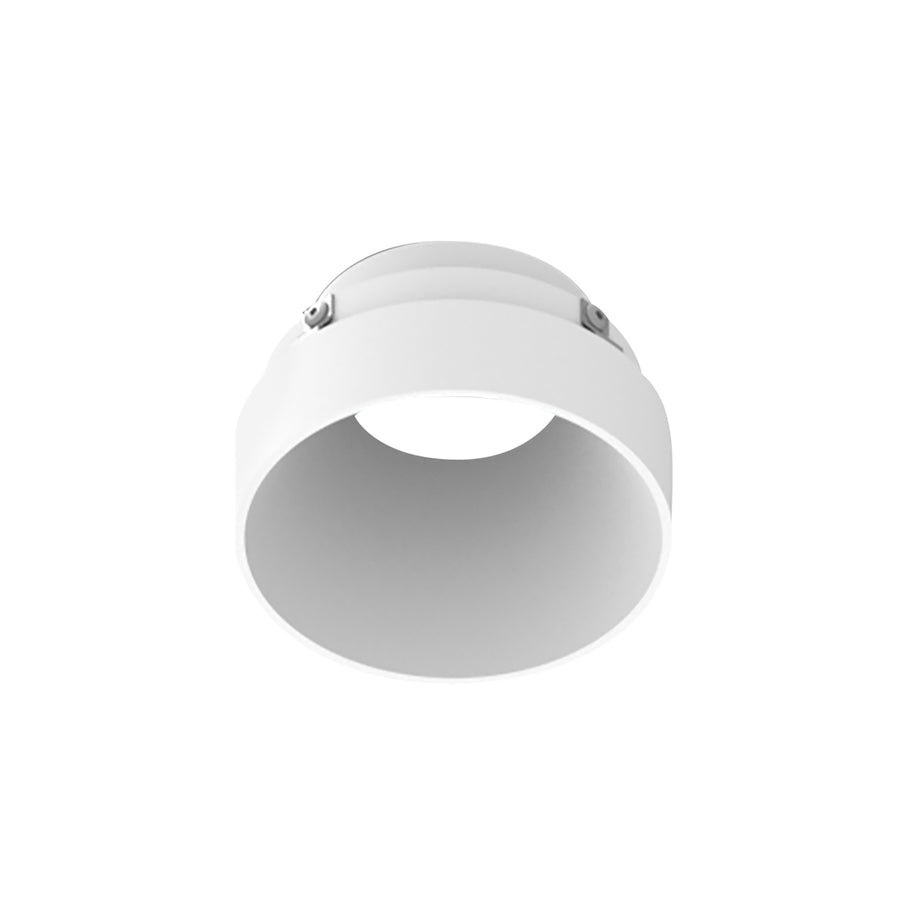

BBBlack$17.95 BZBronze$19.95 HZChampagne Haze$19.95 MPWBright White$17.95

2LED moduleNIOC-24LED · 1100 lm · 90+ CRI — required

927X2700K 930X3000K 935X3500K 940X4000K 9CDXComfort Dim3100K–2000K

3Trimless mud ringRequired for installation

Included in systemNIOC-TLMR-4R

4Driver box12W · 120VAC · Triac / ELV dimming

Included in systemNJCB-12

Product description

Trimless mud-in construction creates a clean ceiling plane with no exposed flange. A deep regressed cone improves visual cut-off. The system includes three field-changeable optics: spot, narrow flood, and flood.

Specification notes

No housing required
36VDC LED module
12W system driver
New construction or remodel
Downlight is wet-location listed
